Product Specifications
| Size | NQ |
| Power | Engine |
| Capacity | 200 Meter |
| Feed System | Hydraulic |
| Rotary Head | 150-1000 rpm |
| Power Source | Hydraulic |
| Hole Diameter | <100 mm |
| Mud Pump Flow | 117 LPM |
| Pull Up Force | 4700 Kg |
| Pull Up Speed | 27 Meter/Min |
| Air Compressor | No |
| Drilling Depth | 100-200 meters |
| Automation Grade | Semi Automatic |
| Drilling Rig Type | Slim Hole Drilling Rig |
| Model Name/Number | JCT-200 |
| Oil Tank Capacity | 300 Liters |
| Usage/Application | Ore Extraction |
| Minimum Order Quantity | 01 Set |
Product Description

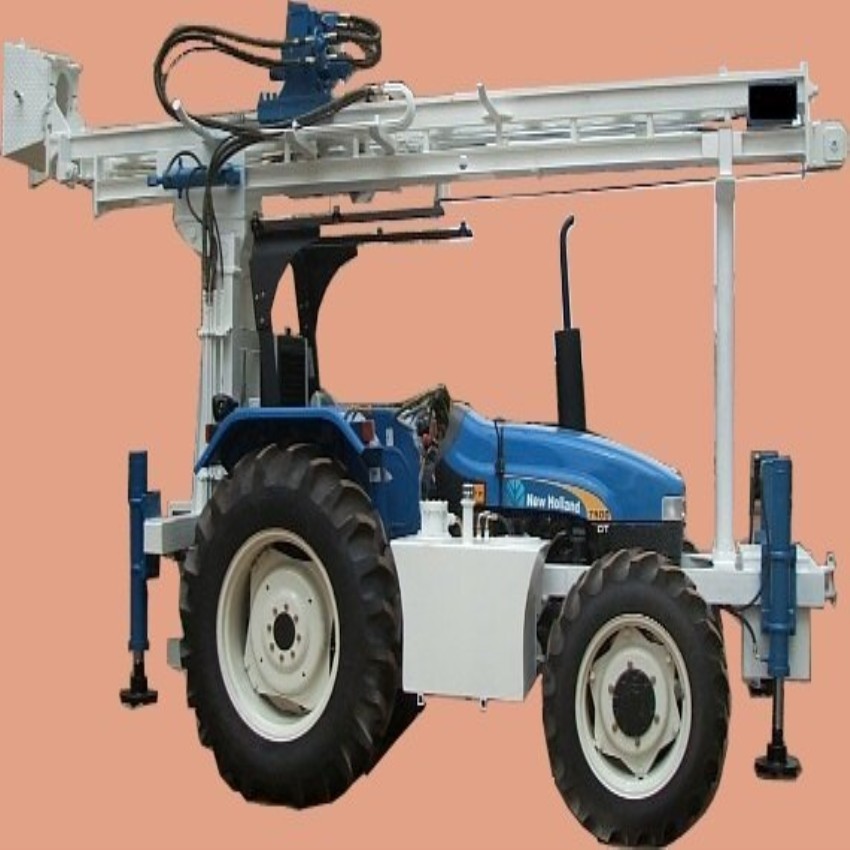

The JCT-200 tractor-mounted diamond wire line drilling rig offers a 200-meter capacity. This semi-automatic, hydraulic rig is designed for slim hole drilling and ore extraction applications.
Similar Products

Leeboy 528-D Crawler Drilling Machine
Brand: Others
₹90,00,000
ASHAPURA AUTOMOBILES
Ahmedabad, Gujarat

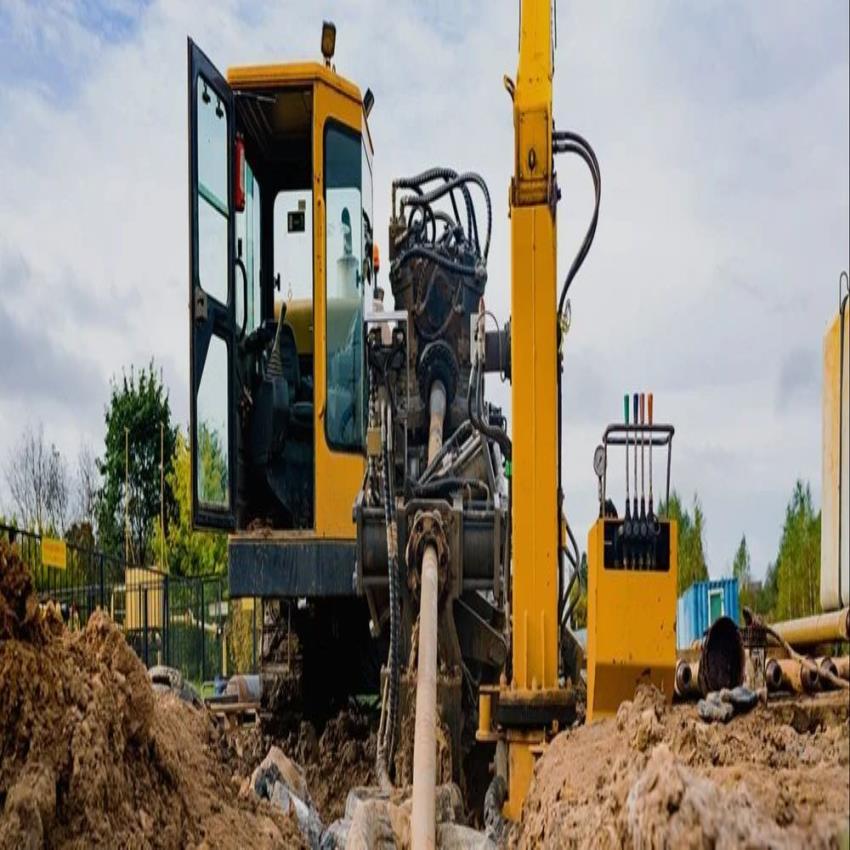

Manual 30 HDD Drill Pilot Machine, Good
