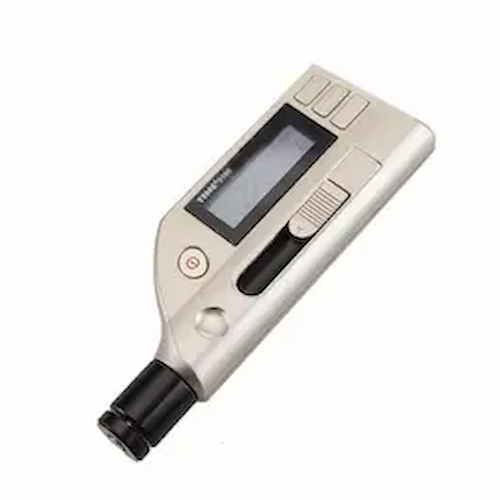

Time 5100 Digital Hardness Tester
₹ 24,900
Brand: Others
VERTEX ENGINEERS AND ASSOCIATES
Verified Supplier
Location
Thane, Maharashtra
GST No.
GST008238
Total Products
35+ Products
Secure
Fast Delivery
Easy Returns
Quality
1
| Model | Time®5100 |
| Power | AAA 1.5V batteries |
| Memory | 270 average readings in 9 group files |
| Output | RS 232 to printer |
| Accuracy | ±6HLD(760 ±30 HLD) |
| Weight(g) | 166 |
| Impact Device | D integrated |
| Hardness Scales | HLD, HB, HRC, HRB, HV, HS |
| Indentation depth | Impact Devices data |
| Operating temperature | 0~40ºC |
| Min. Work piece weight | 2~5kg in stable support 0.05~2kd with compact coupling |
| Overall dimensions(mm) | 155×55×25 |
| Continuous working time | 150h (without backlight) |
| Max. work piece Hardness | 900HLD |
| Min. Thickness of hardened layers | 0.8mm |
| Min. Work piece thickness coupled | 5mm |
| Min. Surface Roughness of Work piece | 1.6µm(Ra) |
| Min. radius of work piece(convex/concave) | Rmin = 50mm (with support ring Rmin= 10mm) |
Time 5100 digital portable hardness tester with ±6HLD accuracy. Measures HLD, HB, HRC, HRB, HV, HS. Operates on AAA batteries with 150h runtime.
