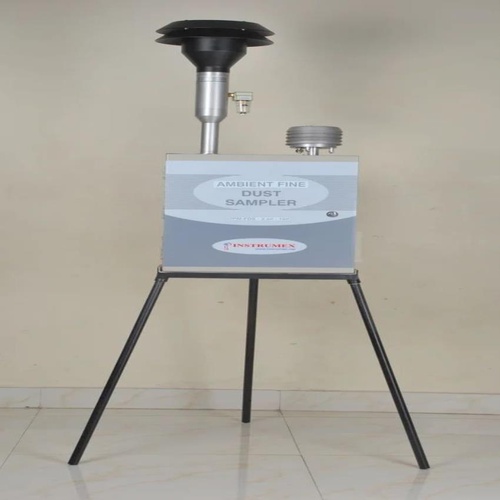

Name: PM 2.5 Air Sampler
Brand: INSTRUMEX
SKU: 731238
Price: 110000 INR
Availability: InStock

Product Specifications

Weight	25 KG
Airflow	16.67
Display	Range 600 to 800 mm Hg. Resolution, 1 mm Hg
Filter Media	47 mm Filter in a Filter Cassette housed in Filter Holder assembly.
Power Source	Electronic
Calibrated from	Fluid Control Research Institute, Palakkad, Kerala
Output Terminal	RS-232C for connection to PC and USB Flash Drive (Optional)
Automation Grade	Automatic
Dimension & Weight	(17x13x19)" /Approx 25 Kg
Temperature Sensors	For Ambient temperature & Filter temperature Range - 5°C to 50°C with a Resolution of 0.10C.
Clock / Timer System	Programmable Real Time control system with automatic start & stop & digital display of date & time & time of sampling. Accuracy ± 2 min / month.
PM 10 Size Separator	EPA Omni-directional ambient particle inlet with 10µ separation assembly & sample transport tube.
PM 2.5 Size Separator	EPA PM 2.5 WINS Impactor
Minimum Order Quantity	1
Flow Rate Meter & Volume Totaliser (USEPA Procedure Followed)	Flow in LPM on Digital Display with a Resolution of 0.01 LPM under actual operating conditions. Flow rate maintained Constant @ 16.67 LPM with ±2% Accuracy Throughout Sampling Period using Micr

Product Description

Automatic PM 2.5 sampler weighing 25 KG. Features EPA PM 2.5 WINS Impactor and Omni-directional inlet. Calibrated at FCRI with RS-232C output.
