Product Specifications
| Seat | PTFE |
| Stem | S.S. 316, S.S. 304 |
| MODEL | 2 LCS-F/3LCS-F |
| Power | N/A |
| Actuator | Single Acting (Spring Return) / Double Acting |
| Diameter | N/A |
| Material | N/A |
| Pressure | N/A |
| Flow Rate | N/A |
| Body Style | N/A |
| Gland Seal | PTFE V Seals Backed By Graphite Wiper Seal |
| Size Range | 1/2" to 4" |
| Valve Type | N/A |
| Valve Design | 2 Way / 3 Way Pneumatic Cylinder Operated Straight Type Control Valves – Pneumatic Globe Valve 2 way / 3 Way |
| Actuator Type | N/A |
| End Connection | Screwed End / Flanged Ends Drilled To ANSI 150 # / Triclover Ends / PN10 |
| Connection Type | N/A |
| Pressure Rating | PN 40 - Up To 42 Bar |
| Temperature Rating | Up To 180° C |
| Body / Bonnet / Plug | CF 8 (S.S. 304), CF 3 (S.S. 304 L), CF 8 M (S.S. 316), CF 3 M (S.S. 316 L), CAST STEEL (WCB 216) (Other Grades Are Available On Request) |
Product Description

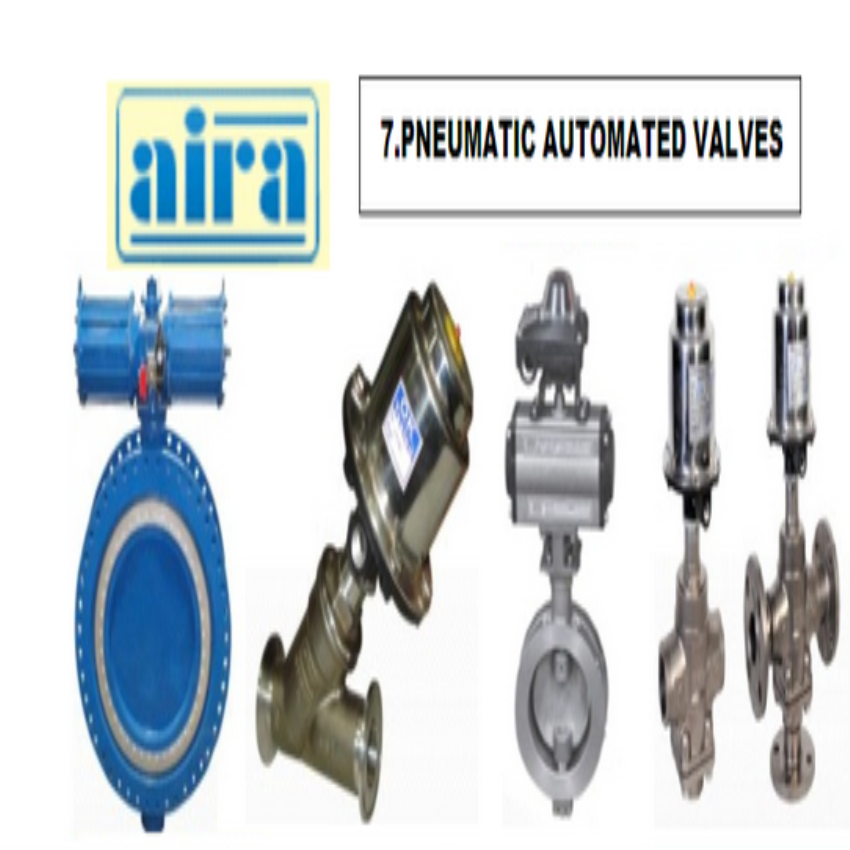

Pneumatic globe control valves (2-way/3-way) with single or double acting actuators. Available in sizes 1/2" to 4", rated to PN 40 (42 Bar) and 180°C. Various body materials and end connections offered.
