Product Specifications
| Power | 3 Phase |
| Bale size | 800 × 600 × T (T variable) (Customized) |
| Bail weight | 50-100 kg approx. |
| Bail Ejection | Hydraulically operated |
| Belt Striping | Manual |
| Electric load | 5 HP-Crompton / havlles / Bharat bijlee, 1440 rpm 3 phase |
| Main Cylinder | Dia-125 mm × stroke 1200 mm – make Namibind |
| Hyd, component | Nachinfuken / Huade/Boss / Polyhydron etc |
| Operation mode | Push button on Panel Board operated |
| Balling Chamber | 800 × 800 × 600 mm (W × H × L) (Customized) |
| Ejection cylinder | Dia-50 mm x stroke 500 mm- make Namibind |
| Feed door opening | 850 × 400 mm |
| Oil tank capacity | 150 ltrs |
| Door opening/closing | Manually by hand |
| Structure of machine | Vertical Fabricated (Customized) |
| Working Pressure max | 300 Psi Max |
| Weight of The Machine | 1200 – 1400 approx |
| Pressing cylinder force | Maximum 40 tons |
| No. of pressing cylinder | One vertical mounted cylinder |
| Overall Machine Dimensions | 1600 × 3000 × 1600 mm (W × H × L) Approx |
| Hyd, oil Seals & ‘0’ Rings | Parker / Techno make |
| Balling Chamber reinforced, ram plate 400 mm, Base plate 25 mm reinforced with ms channel | Made of 6.5 mm ms sheet and structure made of 100 × 50 tube All side |
Product Description

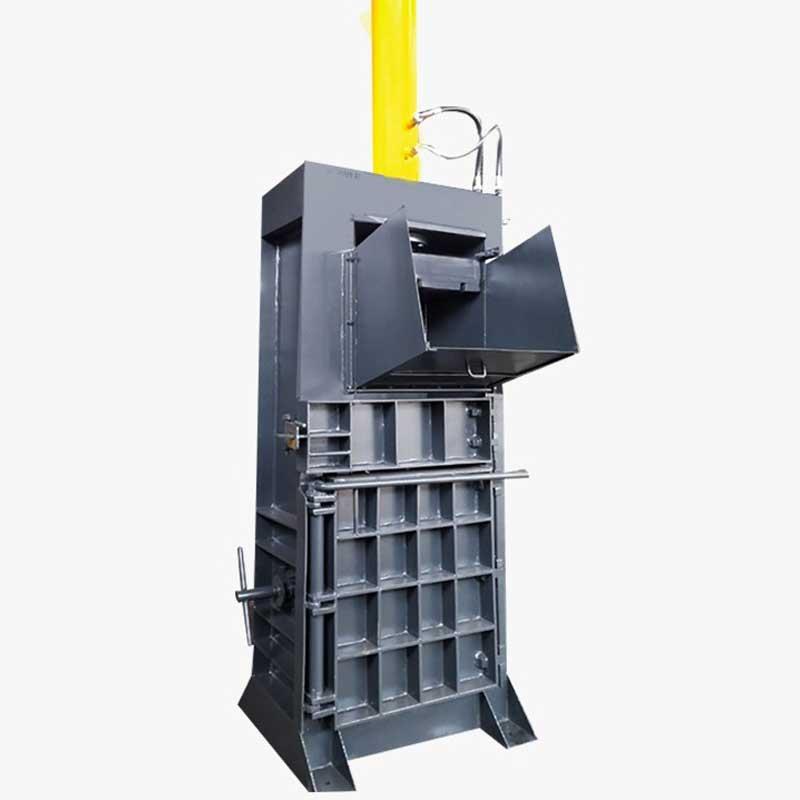

Hydraulically operated baling machine for plastic scrap. Features a 40-ton pressing cylinder, 50-100 kg bail weight, and a 150-liter oil tank capacity. Powered by a 5 HP, 3-phase motor.
