Product Specifications

I Deal InNew Only
Bed length1000 to 10
Job diameter20 to 300mm
Milling headiso 40
Spindle bore100 mm
Main spindle rpm0.1 to 1rpm
Country of OriginMade in India
Longitudinal feeds0.1 to 200mm
Milling head motor2hp
Bed width (max/min)375/450mm
Admit between center300 to 9000mm
Threading lead pitch25 to 200mm
Milling head capacity25mm to 40mm
Multistarats accuracy0.15 degree
Number of multistarts1440
Taper turning attachment300 to 9000mm
Spindle sleve (tape bore)mt-4/mt-5
Lead screw diameter & pitch50mm/2tpi
Tail stock spindle diameter50/75mm

Product Description

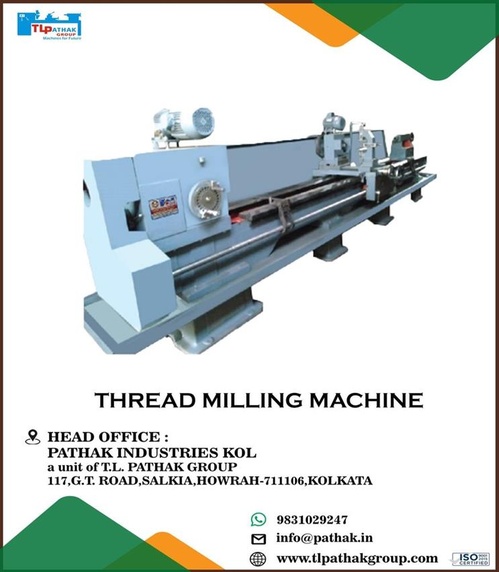

Heavy-duty thread milling machine (Made in India). Accommodates 20-300mm job diameter, 100mm spindle bore, and offers 0.1-1rpm main spindle speed. ISO 40 milling head.
