| Type | Four - Station (SINGLE - TOOL/DOUBLE-TOOLS/WITH AUTOMATIC ASSEMBLE LINE) |
| Items | Details |
| Power | AC380V |
| Air supply | 0.4~0.6Mpa |
| Rotor radius | Motor rotor below 1.6KGThickness of sheet steel:20-60mmRotor diameter:Φ23-39mm(type II)Rotor diameter:Φ28-44mm(type II) |
| Milling method | R-type or V-type milling cutter cylindrical milling. Control the depth and length of milling |
| Balancing speed | 1500-2200rpm |
| Initial unbalance | In accordance with difference of rotor radius and cutting depth for example the single cutting point of rotor diameter of 32mm ≤500mg, the single cutting point of rotor diameter of 40mm ≤800mg |
| Four-station device(type ) | 10-12s(Primary survey, milling from side to side, repetition inspecting) |
| Main components configuration | Air cylinder: SMCActuating motor: MitsubishiSensor: KEYENCE,OMRON,CONTRINEXTouchscreen: SCHNEIDERControl PLC: German SIEMENSStepping motor: Oriental Motor or SANYO |
| Residual unbalanceeccentricity | Better than national standard for Grade 6.3 |
| Volume(length x width x height) | 2000 x 1000 x 1800 mm |

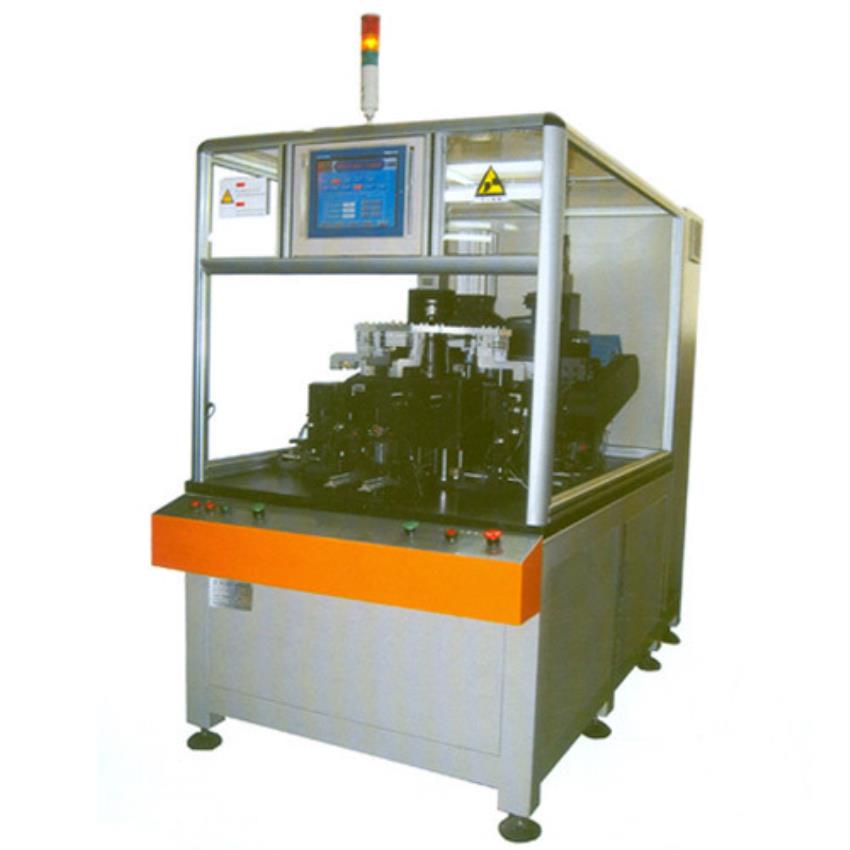

Automatic four-station balancing correction machine with milling. Operates at 1500-2200rpm, AC 380V power. Features keyence sensors and Siemens PLC for precise control.
