Product Specifications
| | turning, drilling,boring,threading, and cutting jobs on materials made up of round bar and |
| Packing size | 1055/1300/565×575mm |
| Spindle bore | 20mm |
| Spindle speed | 100-1800RPM(50Hz)/120-2160RPM(60Hz) |
| Spindle taper | MT3 |
| Chuck diameter | 100mm |
| Power of motor | 750W |
| Swing over bed | 230mm |
| Tailstock taper | MT2 |
| Spindle accuracy | 0.01mm |
| Tool slide travel | 48mm |
| Voltage/Frequency | 230V/50Hz or 120V/60Hz |
| Cross slide travel | 125mm |
| Swing over cross slide | 135mm |
| Range of metric threads | 0.5-3mm |
| Distance between centers | 500/750mm |
| Net weight /Gross weight | 105Kg/135Kg 120Kg/150Kg |
| Range of imperial threads | 8-56TPI |
Product Description

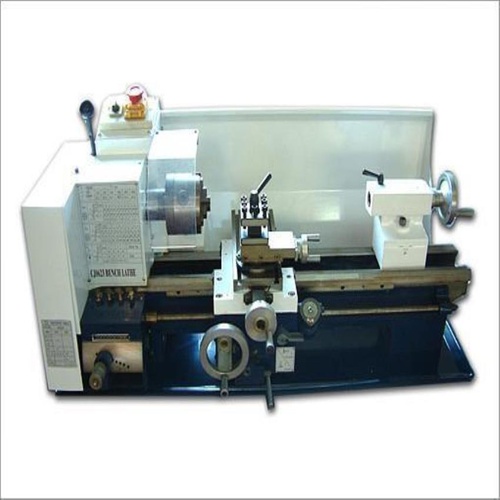

Versatile mini lathe for turning, drilling, boring, threading, and cutting round bar materials. Features 100mm chuck diameter, 500/750mm distance between centers, and 750W motor. Offers 0.5-3mm metric and 8-56 TPI imperial threading.
