Product Specifications
| supply | Internal supply for logic inputs at 19...30 V, <= 100 mA for overload and short-circuit protectionInternal supply for reference potentiometer (2.2 to 10 kOhm) at 10...10.8 V, <= 10 mA for overload and |
| Display | Digital |
| Voltage | 350-500 V |
| Wattage | 7.5 W |
| Frequency | 50 Hz |
| IP Rating | IP65 |
| EMC filter | Integrated |
| Input Phase | 3 Phase |
| speed range | 1...50 |
| line current | 27.7 A for 380 V, 22 kA21 A for 500 V |
| apparent power | 18 kVA |
| assembly style | With heat sink |
| component name | ATV312 |
| motor power hp | 10 hp |
| motor power kW | 7.5 kW |
| range of product | Altivar 312 |
| product destination | Asynchronous motors |
| electrical connection | L1, L2, L3, U, V, W, PA, PB, PA/+, PC/- terminal 16 mm² AWG 6Al1, Al2, Al3, AOV, AOC, R1A, R1B, R1C, R2A, R2B, LI1...LI6 terminal 2.5 mm² AWG 14 |
| Minimum Order Quantity | 2 |
| power dissipation in W | 269 W at nominal load |
| network number of phases | 3 phases |
| [Us] rated supply voltage | 380...500 V (- 15...10 %) |
| maximum transient current | 25.5 A for 60 s |
| product or component type | Variable speed drive |
| product specific application | Simple machine |
| asynchronous motor control profile | Factory set : constant torqueSensorless flux vector control with PWM type motor control signal |
Product Description

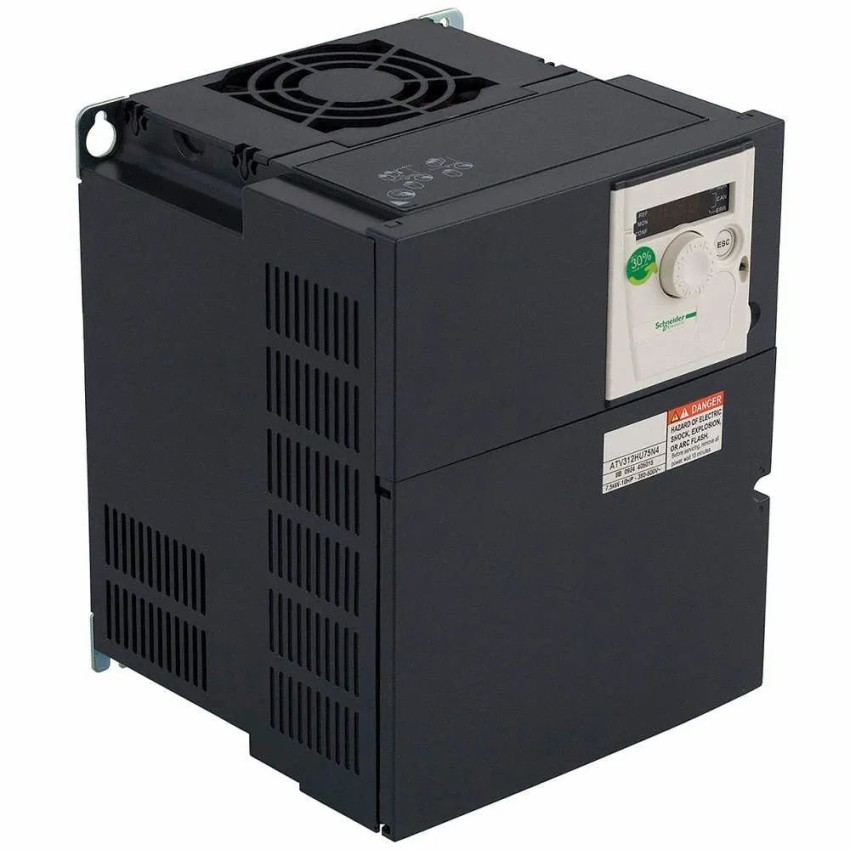

IP65 digital AC drive with 7.5 kW motor power, 3-phase input (380-500V). Features PWM control, integrated EMC filter, and 50 Hz frequency.
