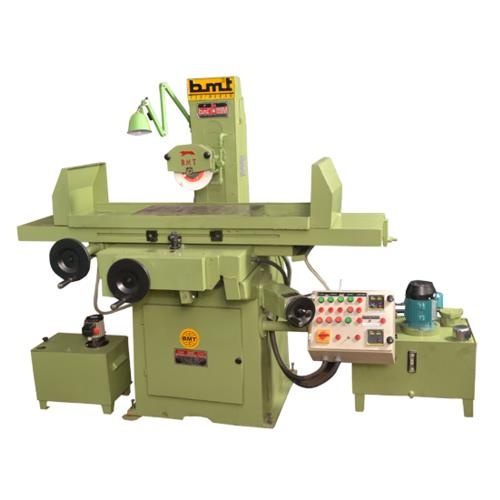

Name: AH 7540 Hydraulic Surface Grinder Machine
Brand: BMT
SKU: 717466
Price: 790000 INR
Availability: InStock

Product Specifications

Power	3 PHASE
model	HYDRAULIC SURFACE GRINDER MACHINE AH 7540
Voltage	415
Capacity	400 X 800
Material	C I CASTING AND IRON STEEL AND ELECTRIC AND GRINDING WHEEL
Automation	Automatic
Micro feed	0.002 / 1 Div.
Table Speed	5 - 25 m/min
Wheel Speed	2800 RPM
Packing Size	100" x 60" x 72" ( LxBxH )
Spindle Motor	2 HP
Max Table Travel	760 x 310 mm
Floor Area Capacity	128" x 68" x 71"
Hydraulic Pump Motor	1.5 HP
Max. Grinding Length	400 X750
Magnet Chuck Suitable	250 x 750 mm
Minimum Order Quantity	1 Piece
Hydraulic Tank Capacity	75 Ltr.
Cross Feed on Hand Wheel	0.05mm = 1 Gra - 5.00mm / 1 Rev.
Wheel Dimension Grinding	250x25x 6.2 mm
Working Surface of Table	750 x 300 mm
Auto Cross Feed Increment	0.3 - 5.0 mm
Maximum Grinding Diameter	400 x 750 MM
Vertical Down Feed on Hand Wheel	0.01mm
Max Distance Center of Spindle to table	400 mm

Product Description

Automatic hydraulic surface grinder machine, 400x750 mm max grinding length, 3 phase, 1.5 HP hydraulic pump motor, 250 x 750 mm magnet chuck.
